Sports Touring Exhaust [Quad-Exit] + TOM'S Racing Rear Diffuser Kit - Toyota Corolla Hatchback (2023+)

REMARK SKU: RK-C4063T-01 + TMS-52159-TZE22-B

$1,899.00 USD

Shipping calculated at checkout

International Shipping Now Available

Price calculated at checkout. Please note: this cost does not include any customs/ import related fees which will be billed directly to buyer by carrier.

BUNDLE DEAL - Buy both and save

Toyota Corolla Hatchback Quad-Exit Catback Exhaust System + TOM'S Diffuser Kit for the 2023+. This diffuser is designed for the 2023+ model, and is different than the 2019-22.

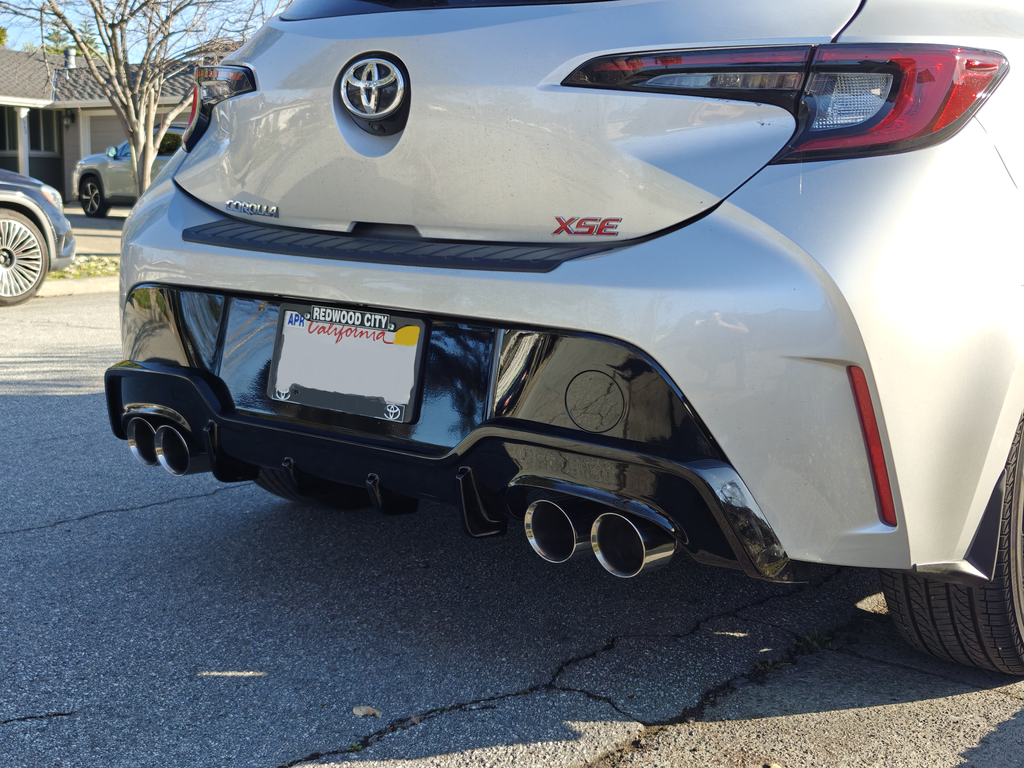

We did not design our exhaust system for the TOM's diffuser but it sure looks like we did. Our 3.5" quad tips fit nicely in the dual openings giving an aggressive appearance.

* Items may ship separately *

*To use this product, you will need to trim the OEM rear bumper/ diffuser to allows for the exhaust tip openings.

*You will be using factory donut gasket and spring-bolts where connects to factory OEM piping.



Options
Part Number Tips
RK-C4063T-01 Stainless Steel
RK-C4063T-01P Burnt Style Stainless Steel

Year/Make

/Model
  • 2023 Toyota Corolla Hatchback, 2.0L 4-Cyl. NA
  • needs diffuser trimming and the diffuser is not removable like 2019~2022 models

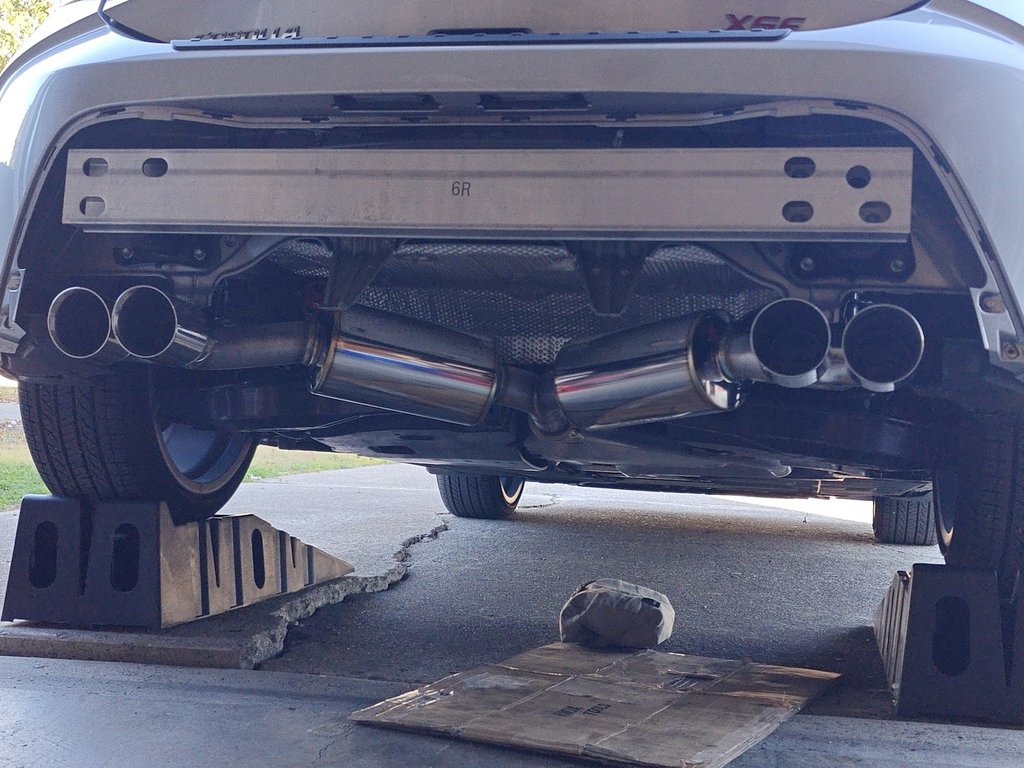

Exhaust Type  Catback Exhaust - Bolt on 2pc design
Piping Diameter 2.5inch, 16 gauge T304 stainless steel, mandrel bent pipe
Tip Diameter 3.5" quad tips (2 on each side)
Piping Material  T304 stainless steel
Exhaust Tip  Double Wall tip design - Stainless Steel, Stainless Burnt, Titanium Burnt
Muffler Material T304 stainless steel
Muffler 2 REMARK proprietary designed mufflers
Welding Handcrafted high quality TIG welding
Weight

** Eligible for purchases direct from www.remark-usa.com
** Excludes taxes and duties on international orders
** No Returns or Exchanges accepted
** Read disclaimer before purchasing: Click here to read

TOM'S Racing Rear Bumper Diffuser
TOM'S Racing Rear Bumper Diffuser for 2023+ Toyota Corolla Hatchback
***Shown: TOM'S Racing Rear Bumper Diffuser (Painted- Matte Black)
***Note: Drilling of pilot holes to underside of factory body panels required for installation
***Note: Cutting modification of factory rear bumper cover (lower portion) required for installation on models that are not equipped with factory bottom chrome tips (ie: Hybrid models)

Bolt-On Yes
Part Number TMS-52159-TZE22-B
Year 2023
Make Toyota
Model Corolla Hatchback
Engine M20A-FXS
Chassis E210
